DGT1SX - High Speed Load Cell Amplifier

• Dynamic weight sampling at high speed, up to 4800 Hz
• Automatic weighing detection
• Weighing start/stop by weight tresholds or by triggers (digital inputs/photocells)
• Last 10 weighs memory
• Fully programmable weight filters using the Dini Argeo XSPEED TOOL
• Load cell failure detection

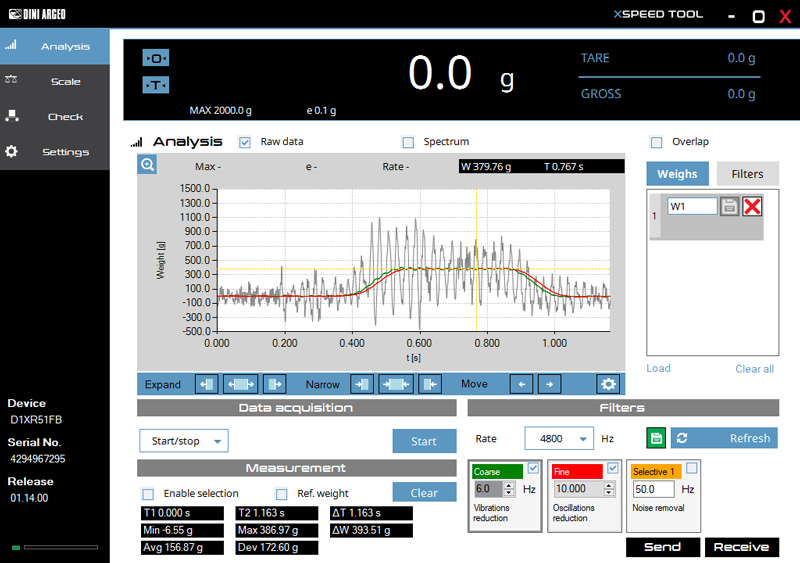

XSPEED Tool is the PC program for optimizing the performance of the weighing system integrated in the process and industrial automation. Through XSPEED TOOL, you can set the most suitable weighing filter for your application and create custom filters, thus maximizing the speed and accuracy of weighing in static and dynamic applications.
Free download from the Download section.

• Number of scales/channels: 1
• Calibration:
  - Theoretical (mV/V)
  - With sample weights
  - Via WEB SERVER
  - Via XSPEED TOOL
• Conversion rate: Up to 4800 Hz
• Maximum number of load cells: Up to 16x350Ω
• Load cell excitation voltage: 5 V
• Minimum sensitivity:
  - High resolution 0.01 µV/d
  - Legal for trade 0.3 µV/e
• Number of legal-for-trade divisions: Up to 10,000e or multi-field 3,000+3,000e
• Linearization: up to 8 points
• Communication ports:
  - 1 micro-USB port (device) for PC configuration with Dinitools® and XSpeed Tool
  - 1 RS485 port
  - Fieldbus: see available models
• Communication protocols: Modbus RTU, ASCII or Fieldbus
• Communication rate:
  - On serial port up to 1600 Hz
  - On Fieldbus up to 120 Hz
  - Via Modbus RTU up to 110 Hz
• PC programs for configuration: XSPEED TOOL
• Display: Red LED 8 mm, 6 characters
• Keyboard: 5-key mechanical
• Keyboard functions: Zeroing, Tare, Visualization, ON/OFF
• Housing: ABS, for Din bar (120 x 23 x 112 mm)
• Power supply: 12÷24 Vdc
• Operating temperature range:
  - For internal use -20°C ÷ +60°C
  - Approved -10°C ÷ +40°C
• Max humidity: 85%, non-condensing
